TCMT Positive Inserts for Light Turning and Boring

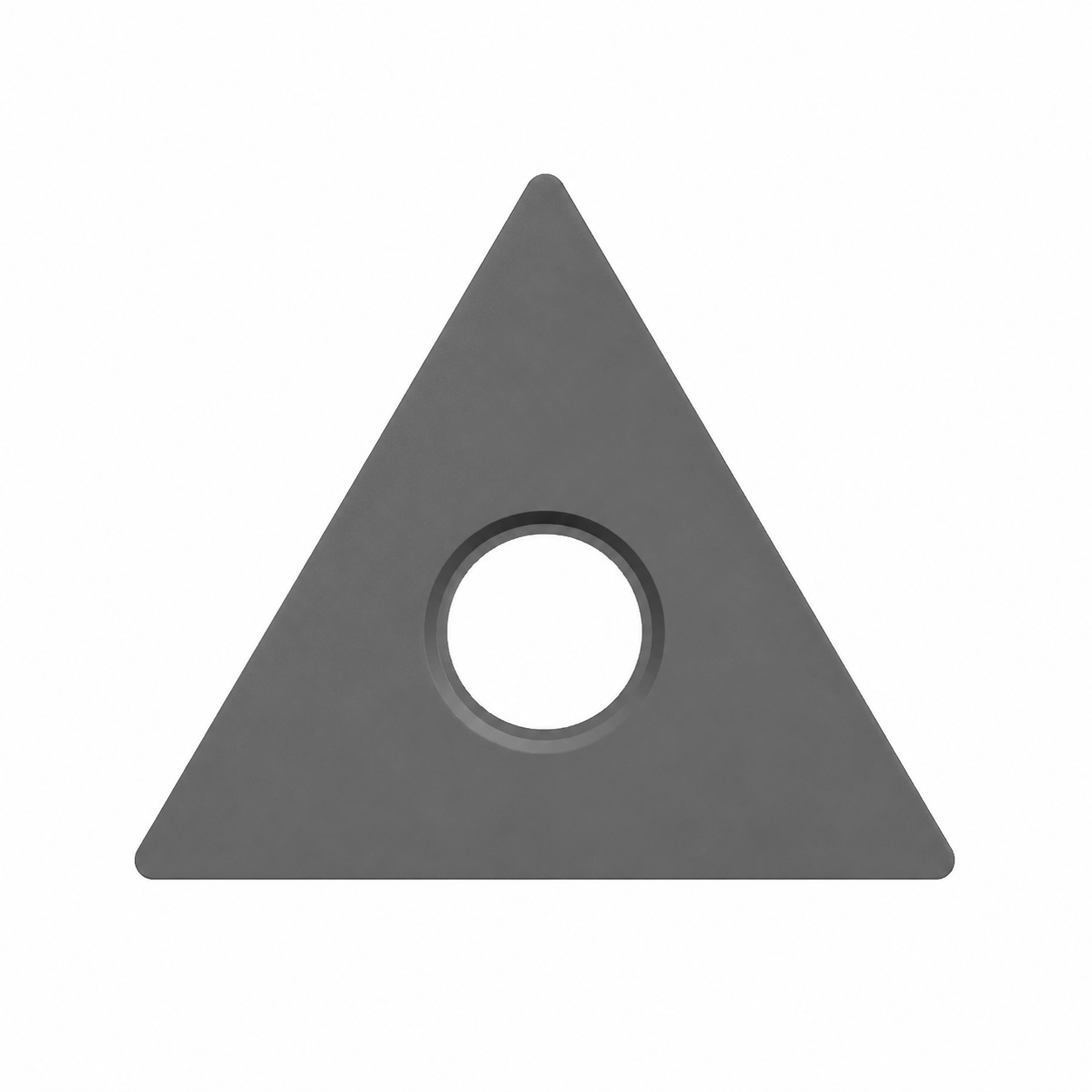

JetEdge TCMT carbide turning inserts use a positive, single-sided 60° triangular format with a 7° clearance angle. The geometry supports low cutting forces and flexible approach directions for light turning, facing and selected boring applications.
Product Summary
Item
Description
ISO designation
TCMT
Insert type
Positive, single-sided
Shape
60° triangle
Clearance angle
7°
Usable cutting edges
Up to 3, depending on geometry
Typical operations
Light turning, facing and selected boring
Grade selection
Confirmed according to material and cutting condition
Selected Reference Sizes
Insert Size
IC (mm)
Length (mm)
Thickness (mm)
Hole (mm)
Nose Radius (mm)
TCMT090204
5.56
9.60
2.38
2.50
0.4
TCMT090208
5.56
9.60
2.38
2.50
0.8
TCMT110204
6.35
11.00
2.38
2.80
0.4
TCMT110208
6.35
11.00
2.38
2.80
0.8
TCMT16T304
9.525
16.50
3.97
4.40
0.4
TCMT16T308
9.525
16.50
3.97
4.40
0.8
Grade Selection Direction
The final JetEdge grade and edge preparation are confirmed according to workpiece material, required surface finish, internal or external operation and setup stability.
Information Required for Selection
Please provide the complete insert designation, toolholder or boring bar model, workpiece material, internal or external operation, cutting condition and required quantity.
Call to Action
Contact JetEdge for selection, samples and quotations.
