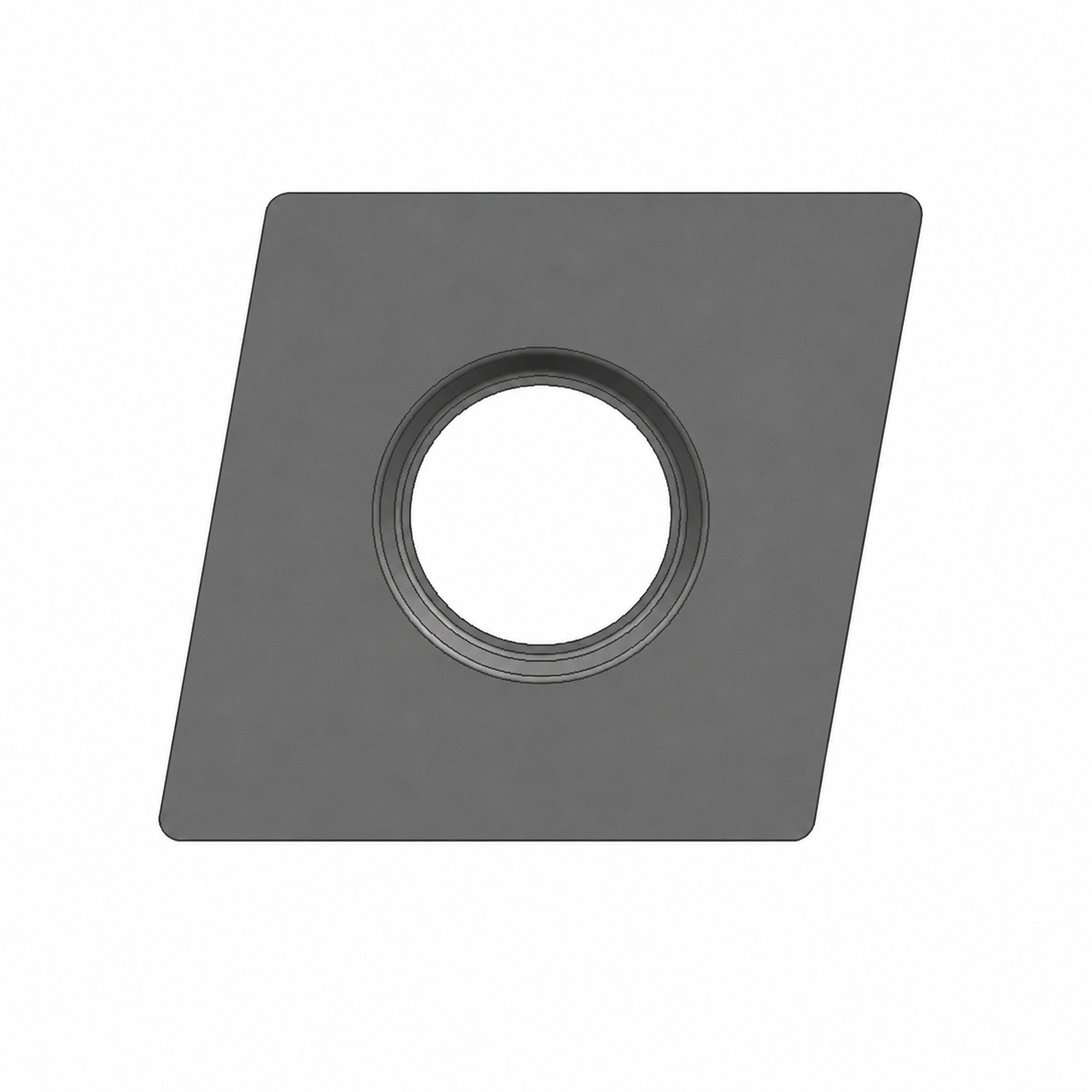

CCMT Positive Inserts for Finishing and Light Machining
JetEdge CCMT carbide turning inserts use a positive 80° rhombic shape with a 7° clearance angle. The positive geometry helps reduce cutting force and is suitable for finishing, light external turning, boring and selected internal turning applications.
Available configurations are confirmed according to the complete insert designation, workpiece material, operation and toolholder.
Product Summary
Item
Description
ISO designation
CCMT
Insert type
Positive, single-sided
Shape
80° rhombic
Clearance angle
7°
Typical operations
Finishing, light turning, boring and internal turning
Workpiece materials
Selected ISO P, M and K applications
Grade selection
Confirmed according to material and cutting condition
Selected Reference Sizes
Insert Size
IC (mm)
Length (mm)
Thickness (mm)
Hole (mm)
Nose Radius (mm)
CCMT060202
6.35
6.45
2.38
2.80
0.2
CCMT060204
6.35
6.45
2.38
2.80
0.4
CCMT060208
6.35
6.45
2.38
2.80
0.8
CCMT09T304
9.525
9.67
3.97
4.40
0.4
CCMT09T308
9.525
9.67
3.97
4.40
0.8
CCMT120404
12.70
12.90
4.76
5.50
0.4
CCMT120408
12.70
12.90
4.76
5.50
0.8
Grade Selection Direction
ISO Material
JetEdge Grade Direction
Typical Application
P Steel
JE8025P or application-specific grade
Finishing to general turning
M Stainless Steel
JE6025M or application-specific grade
Finishing and light-medium turning
K Cast Iron
JE4025K or application-specific grade
Selected light-medium turning
The final grade and edge preparation are confirmed during application review and quotation.
Information Required for Selection
Please provide the complete insert designation, toolholder or boring bar model, workpiece material and hardness, external or internal operation, cutting condition and required quantity.
