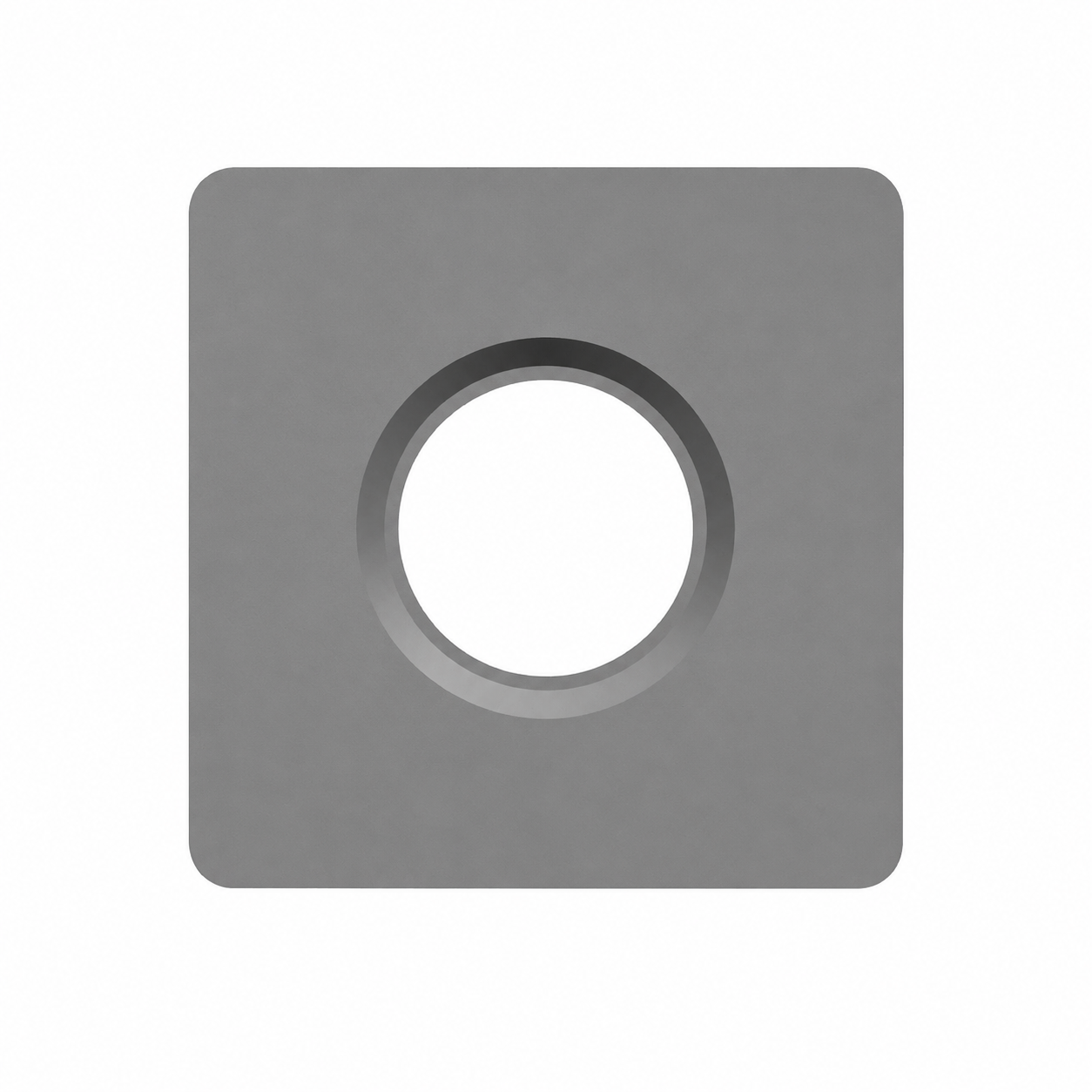

JetEdge SCMT carbide turning inserts use a positive, single-sided square format with a 7° clearance angle. The positive geometry supports low cutting forces in finishing, light external turning, facing and selected boring applications.
Available in selected sizes and JetEdge grades for steel, stainless steel, cast iron and application-specific materials.
Product Summary
Item
Description
ISO designation
SCMT
Insert type
Positive, single-sided
Shape
Square, 90° corner
Clearance angle
7°
Typical operations
Finishing, light turning, facing and selected boring
Grade selection
Selected according to material and cutting condition
Nominal ISO Dimensions
Insert Size
IC / Length (mm)
Thickness (mm)
Hole (mm)
Nose Radius (mm)
SCMT09T304
9.525
3.97
4.40
0.4
SCMT09T308
9.525
3.97
4.40
0.8
SCMT120404
12.70
4.76
5.56
0.4
SCMT120408
12.70
4.76
5.56
0.8
Grade Direction
ISO Material
JetEdge Grade Direction
Typical Application
P Steel
JE8025P or application-specific grade
Finishing and light turning
M Stainless Steel
JE6025M or application-specific grade
Light turning under controlled conditions
K Cast Iron
JE4025K or application-specific grade
Selected light-medium turning
Information Required for Selection
Please provide the complete insert designation, toolholder or boring bar model, workpiece material, external or internal operation, surface-finish target and required quantity.
Call to Action
Contact JetEdge for selection, samples and quotations.
