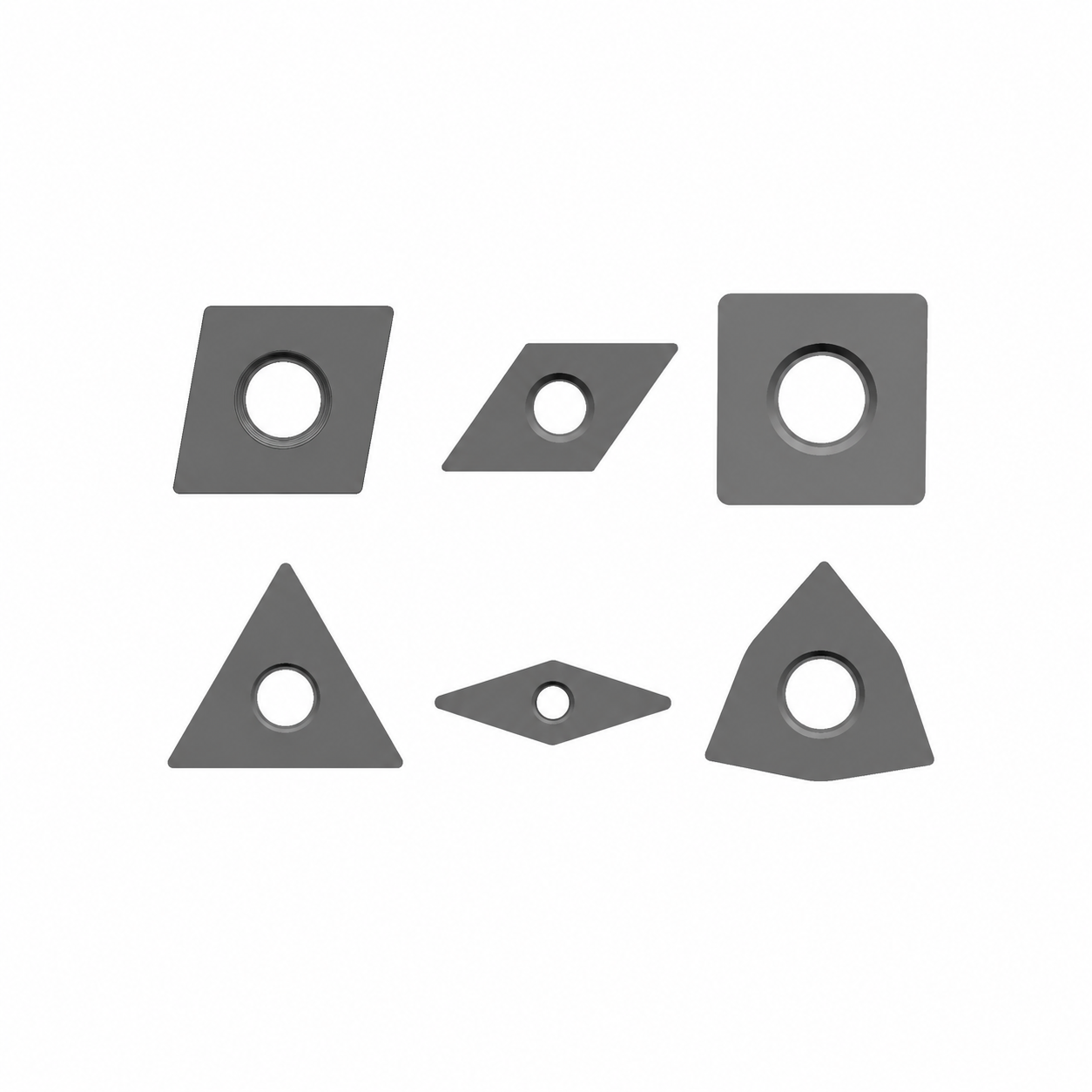

Special-Profile Inserts for Application-Specific Turning
JetEdge special-profile turning inserts cover selected small-part, precision contouring and application-specific turning requirements that are not efficiently represented by the main ISO product families.
The ordering codes shown below are JetEdge product designations. Detailed dimensions and the appropriate grade are supplied according to the selected product drawing and application.
Available Series and Reference Models
Series
Selected Reference Models
Application Direction
CCRW
CCRW030101, CCRW040101, CCRW060202, CCRW09T302
Small-part and general precision turning
DCRW
DCRW070202, DCRW11T301, DCRW11T302
Precision profiling and general turning
SCRW
SCRW09T302
Light square-insert turning
TCRW
TCRW080202, TCRW090202, TCRW110202, TCRW110302
Small-part and flexible triangular turning
VBRW
VBRW110301, VBRW110302, VBRW160402
Precision contouring and profile access
TBRB
TBRB060101
Micro and small-part turning
TPRB
TPRB090202, TPRB110302
Small-part and application-specific turning
TNRA
TNRA160402
Flat-top or special-edge triangular turning
TNRG
TNRG160402-TAB
Precision and small-part finishing
TNRW
TNRW160302
Application-specific triangular turning
VNMW
VNMW110302
Profile turning with a narrow point angle
VPRW
VPRW110302
Precision profile turning
Selected Reference Dimensions
Reference Model
IC (mm)
Length (mm)
Thickness (mm)
Hole (mm)
Nose Radius (mm)
CCRW060202
6.35
6.45
2.38
2.80
0.2
DCRW11T302
9.525
11.60
3.97
4.40
0.2
SCRW09T302
9.525
9.525
3.97
4.40
0.2
TCRW110202
6.35
11.00
2.38
2.80
0.2
TCRW110302
6.35
11.00
3.18
2.80
0.2
VBRW110302
6.35
11.10
3.18
2.80
0.2
TBRB060101
3.97
6.88
1.59
2.40
0.1
TPRB110302
6.35
11.00
3.18
3.40
0.2
TNRA160402
9.525
16.50
4.76
3.81
0.2
TNRW160302
9.525
16.50
3.18
4.40
0.2
VNMW110302
6.35
11.10
3.18
2.80
0.2
VPRW110302
6.35
11.10
3.18
2.80
0.2
Grade and Coating Direction
Grade, coating and edge preparation are selected by workpiece material and application. The main directions include JetEdge P, M, K and S grade families. Detailed availability is provided with the quotation.
Information Required for Selection
Please provide the current insert code or drawing, toolholder model, workpiece material, component profile, dimensional requirement, cutting condition and required quantity.
Call to Action
Contact JetEdge for selection, samples and quotations.
