VNMG Negative Inserts for Contouring and Profile Access

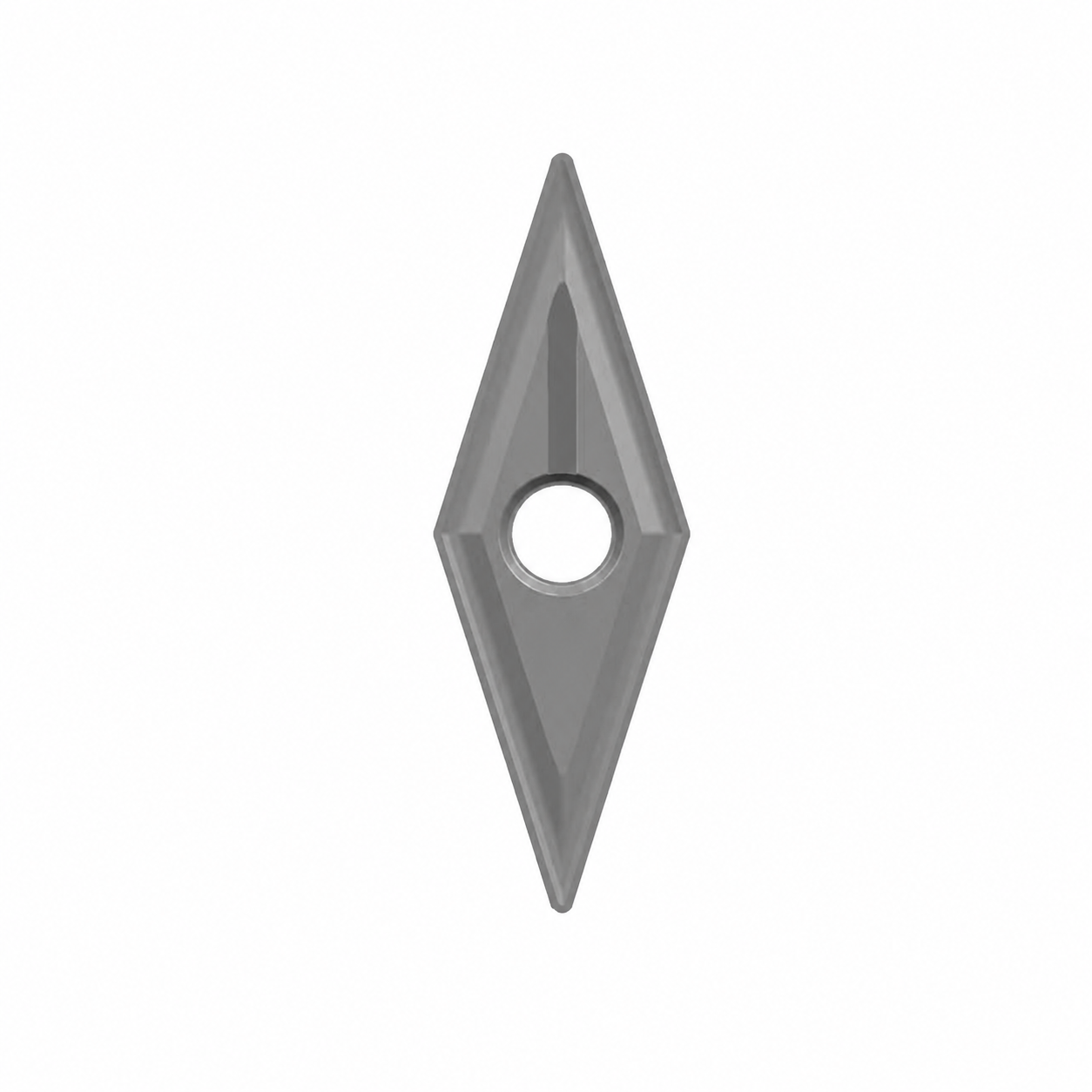

JetEdge VNMG carbide turning inserts use a negative, double-sided 35° rhombic format. The narrow point angle provides access for contouring, profiling and difficult component features where wider insert shapes may interfere.
Because of the narrow point angle, edge load, setup stability and cutting parameters must be reviewed carefully.
Product Summary
Item
Description
ISO designation
VNMG
Insert type
Negative, double-sided
Shape
35° rhombic
Clearance angle
0°
Typical operations
Contouring, profiling and difficult-to-access turning
Workpiece materials
Selected ISO P, M and K applications
Selected Reference Sizes
Insert Size
IC (mm)
Length (mm)
Thickness (mm)
Nose Radius (mm)
VNMG160404
9.525
16.60
4.76
0.4
VNMG160408
9.525
16.60
4.76
0.8
VNMG160412
9.525
16.60
4.76
1.2
Grade Selection Direction
ISO Material
JetEdge Grade Direction
Application Direction
P Steel
JE8025P or application-specific JetEdge P grade
General to selected rough turning
M Stainless Steel
JE6025M
General turning and profiling
K Cast Iron
JE4025K
General to selected rough turning
Available in selected chipbreakers and JetEdge grades. Selection is based on edge load and profile access.
Information Required for Selection
Please provide the complete insert designation, toolholder model, component profile, workpiece material, cutting direction, interruption level and required quantity.
Call to Action
Contact JetEdge for selection, samples and quotations.
