WNMG Turning Inserts for General Turning and Facing

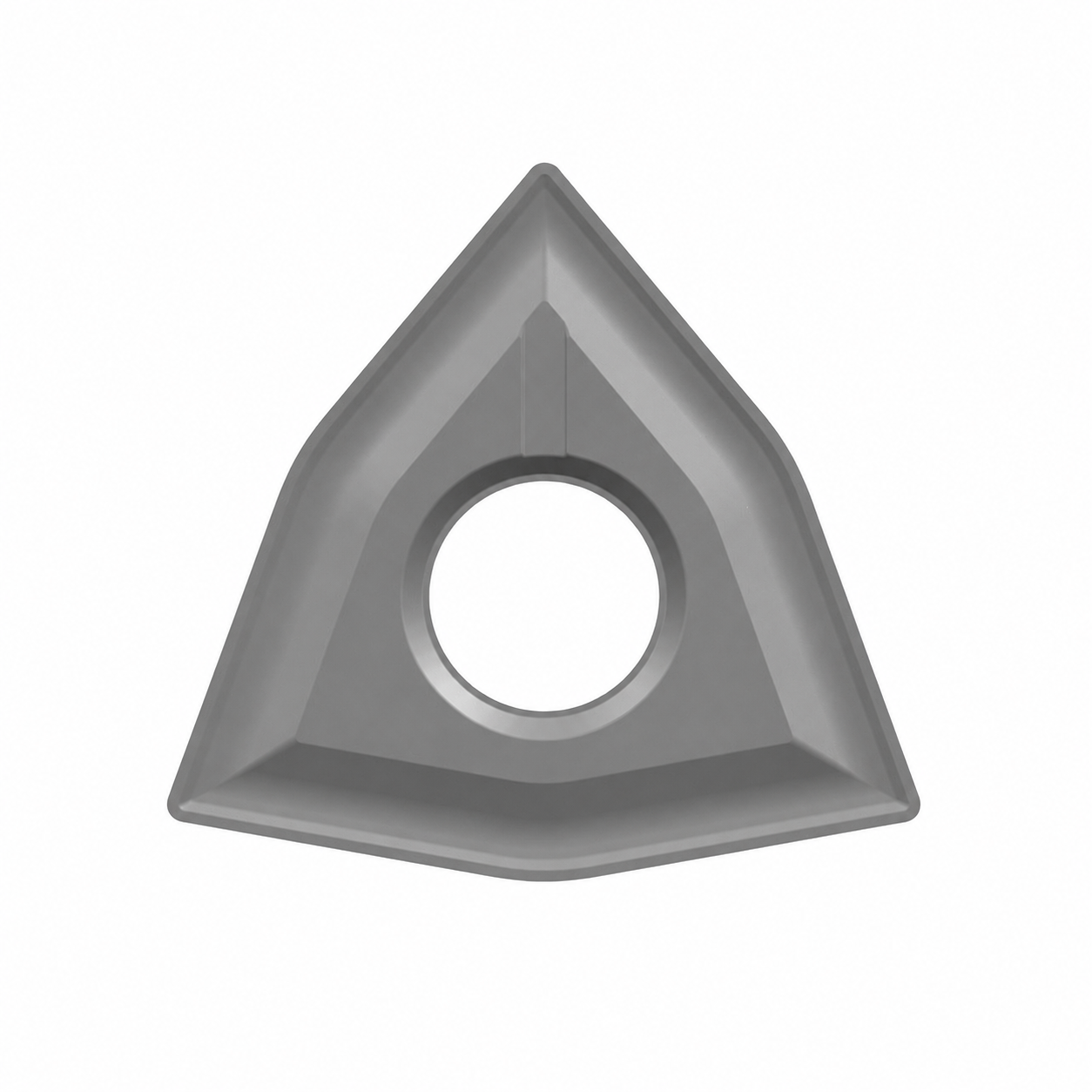

JetEdge WNMG carbide turning inserts use a negative, double-sided 80° trigon format with multiple usable cutting edges. Selected configurations are intended for external turning and facing in steel, stainless steel and cast iron.
Final selection depends on the complete insert designation, workpiece material, machining operation, cutting condition and toolholder.
Product Summary
Item
Description
ISO designation
WNMG
Insert type
Negative, double-sided
Shape
80° trigon
Clearance angle
0°
Usable cutting edges
Up to 6, depending on geometry
Typical operations
External turning and facing
Workpiece materials
Selected ISO P, M and K applications
Coating route
CVD or PVD, depending on the selected grade
Selected Reference Sizes
Insert Size
IC (mm)
Length (mm)
Thickness (mm)
Hole (mm)
Nose Radius (mm)
WNMG080404
12.70
8.70
4.76
5.16
0.4
WNMG080408
12.70
8.70
4.76
5.16
0.8
WNMG080412
12.70
8.70
4.76
5.16
1.2
Selected Chipbreaker and Grade Direction
Reference Configuration
JetEdge Grade
ISO Material
Application Direction
WNMG080408-TFA
JE8025P
P Steel
Finishing to light-medium turning
WNMG080408-TMB
JE6025M
M Stainless Steel
Medium machining / general turning
WNMG080408-TMD
JE4025K
K Cast Iron
Medium machining / general turning
WNMG080412-TMA
JE8025P
P Steel
General to rough turning
Available in selected chipbreakers and JetEdge grades. Please provide the complete designation for selection and quotation.
Information Required for Selection
Please provide the complete insert designation, toolholder model, workpiece material and hardness, machining operation, cutting condition, current cutting data and required quantity.
Call to Action
Contact JetEdge for selection, samples and quotations.
