TNMG Negative Inserts for Flexible Turning Applications

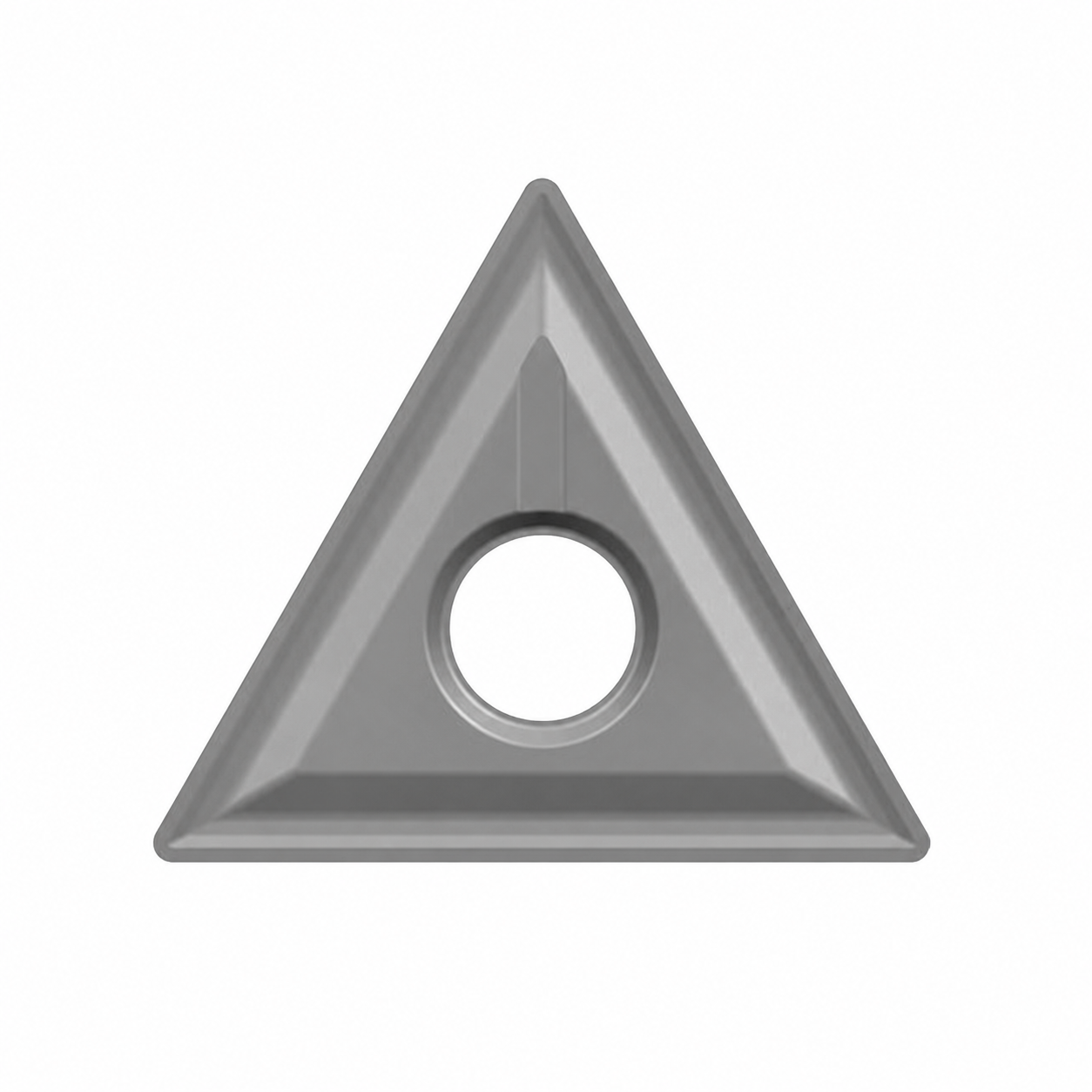

JetEdge TNMG carbide turning inserts use a negative, double-sided 60° triangular format. The geometry provides multiple cutting edges and flexible approach directions for general turning, facing and selected roughing applications.
Selected configurations are available for steel, stainless steel and cast iron. Final selection must be based on the complete insert designation and actual cutting condition.
Product Summary
Item
Description
ISO designation
TNMG
Insert type
Negative, double-sided
Shape
60° triangle
Clearance angle
0°
Usable cutting edges
Up to 6, depending on geometry
Typical operations
General turning, facing and selected roughing
Workpiece materials
Selected ISO P, M and K applications
Coating route
CVD or PVD, depending on the selected grade
Selected Reference Sizes
Insert Size
IC (mm)
Length (mm)
Thickness (mm)
Hole (mm)
Nose Radius (mm)
TNMG160404
9.525
16.50
4.76
3.81
0.4
TNMG160408
9.525
16.50
4.76
3.81
0.8
TNMG160412
9.525
16.50
4.76
3.81
1.2
TNMG160416
9.525
16.50
4.76
3.81
1.6
TNMG220408
12.70
22.00
4.76
5.16
0.8
TNMG220412
12.70
22.00
4.76
5.16
1.2
TNMG220416
12.70
22.00
4.76
5.16
1.6
Selected Chipbreaker and Grade Direction
Reference Configuration
JetEdge Grade
ISO Material
Application Direction
TNMG160408-TFA
JE8025P
P Steel
Finishing to light-medium turning
TNMG160408-TMB
JE6025M
M Stainless Steel
Medium machining / general turning
TNMG160408-TMD
JE4025K
K Cast Iron
Medium machining / general turning
TNMG160412-TMA
JE8025P
P Steel
General to rough turning
TNMG220412-TRA
JE4025K
K Cast Iron
Rough turning
Available in selected chipbreakers and JetEdge grades. Please provide the complete designation for selection and quotation.
Information Required for Selection
Please provide the complete insert designation, toolholder model, workpiece material and hardness, machining operation, cutting condition, current cutting data and required quantity.
